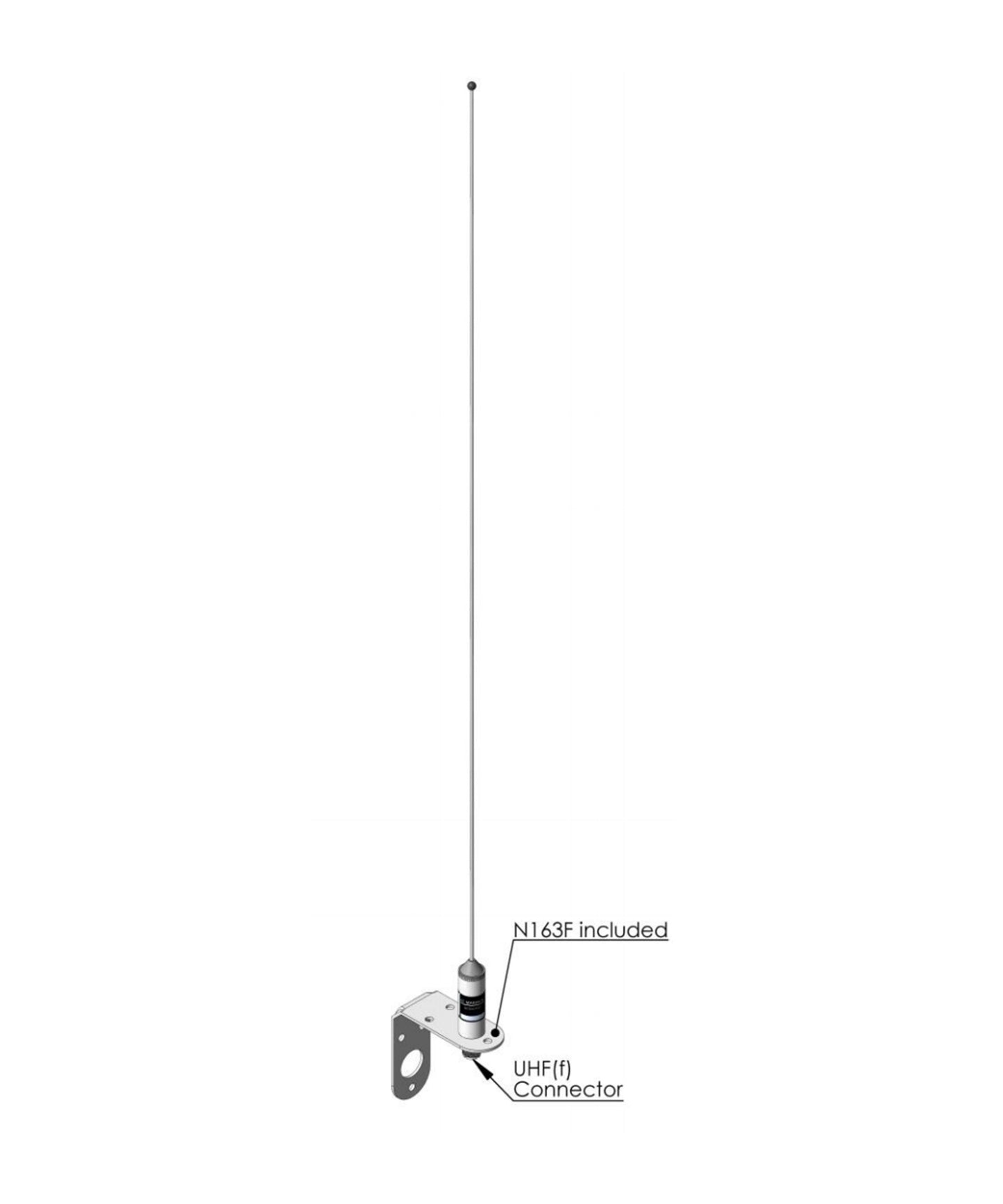

AC Antennas CELMAR0-1 VHF and DAB/FM Antenna
Product Description
CELmar0-1 is a stainless steel omnidirectional sailboat antenna. The CELmar0-1 is manufactured in premium quality materials in order to prevent galvanic corrosion. The antenna is suitable for rail or mast mounting.
CELmar0-1 has been sold worldwide for more than two decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.
Note: N163F mounting is included with this product.
Electrical Specifications
| Part No. | 100000-P |
| Product Name | CELMAR0-1 |
| Frequency Range (MHz) | 88-108 / 156.0-162.5 / 160-250 |
| Connector Termination | UHF female |
| Power Rating (Watt) | 100 |
Mechanical Specifications
| Length (m/ft.) | 0.99m / 3.25ft |
| Weight (kg/lbs.) | 0.34kg / 1.75lbs |
| Thread | 5/8" 24TPI Male |
| Parts included | Incl. N162F |
Further information
Product Sheet
Product Code
ACM-CELMAR0-1
Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
