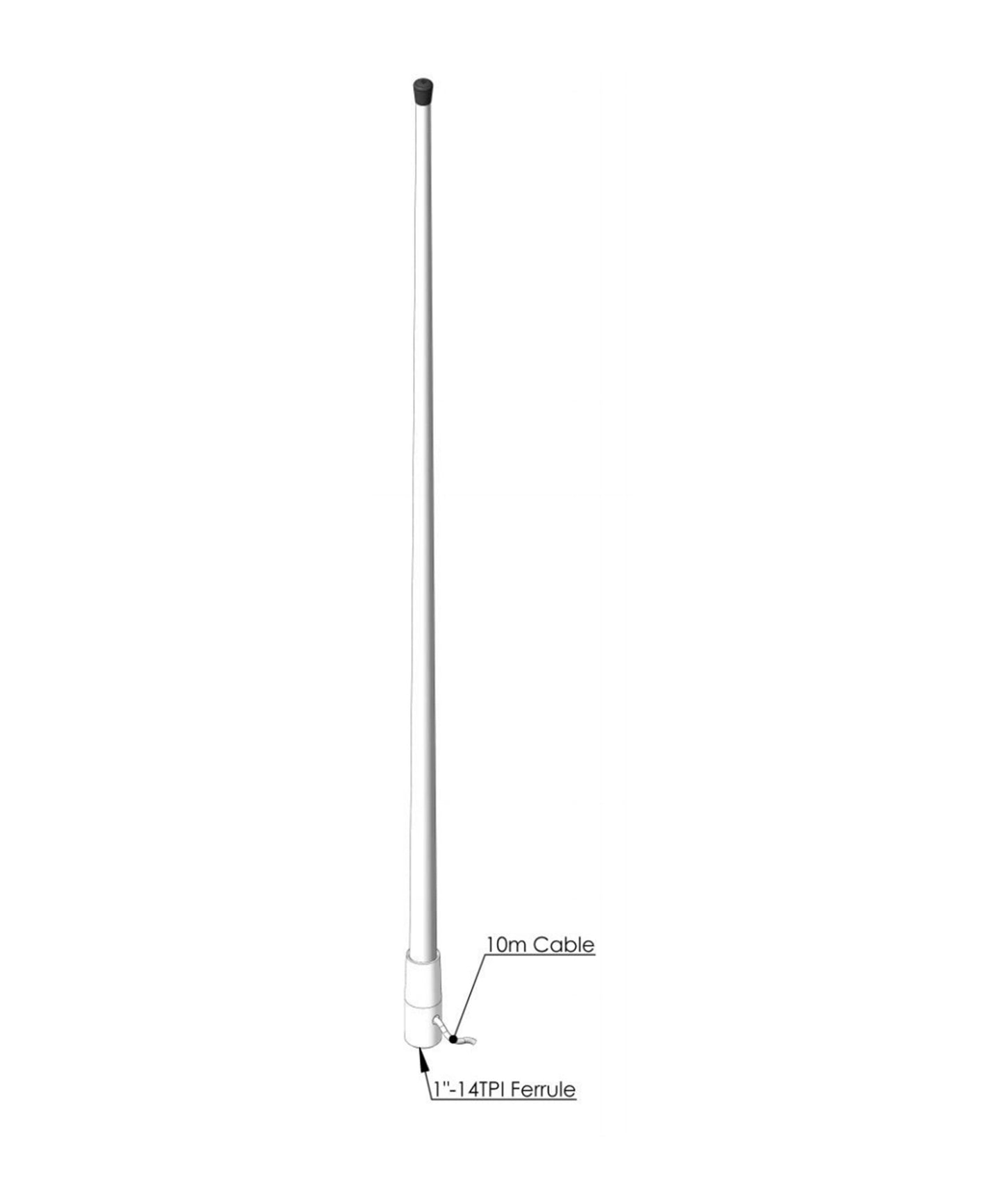

AC Antennas CELMAR2-3 VHF and DAB/FM Antenna
Product Description
CELmar2-3 is a lightweight fibreglass omnidirectional antenna. The CELmar2-3 is manufactured in premium quality materials in order to prevent galvanic corrosion. The antenna ferrule fits 1‚¬?-14TPI thread mounts directly.
CELmar2-3 is sold worldwide through more than three decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions.
Note: Mountings are not included with this product. Please refer to the Antenna Mounting Guide and purchase the appropriate mountings separately.
Electrical Specifications
| Part No. | 100008-P |
| Product Name | CELMAR2-3 |
| Frequency Range (MHz) | 88-108 / 156.0-162.5 / 160-250 |
| Connector Termination | UHF female |
| Power Rating (Watt) | 100 |
Mechanical Specifications
| Length (m/ft.) | 1.06m / 3.48ft |
| Weight (kg/lbs.) | 0.99kg / 2.18lbs |
| Thread | 1" 14TPI Ferrule Female |
Further information
Product Sheet
Product Code
ACM-CELMAR2-3
Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
