AC Antennas CX3 5/8-10 VHF Antenna

AC Antennas

  • S$257.00

Contact Us

Product Description

CX3 5/8-10 is a collinear coaxial omnidirectional dipole antenna. The CX3 5/8-10 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of brass.

CX3 5/8-10 has been sold worldwide for more than four decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

Note: Mountings are not included with this product. Please refer to the Antenna Mounting Guide and purchase the appropriate mountings separately.

Electrical Specifications

Part No. 130004-T
Product Name CX3 5/8-10
Frequency Range (MHz) 156.0-162.5
Gain (dBd / Marine dB) 3/6
Connector Termination UHF female
Power Rating (Watt) 100

Mechanical Specifications

Length (m/ft.) 2.64m / 8.66ft
Weight (kg/lbs.) 0.6kg / 1.32lbs

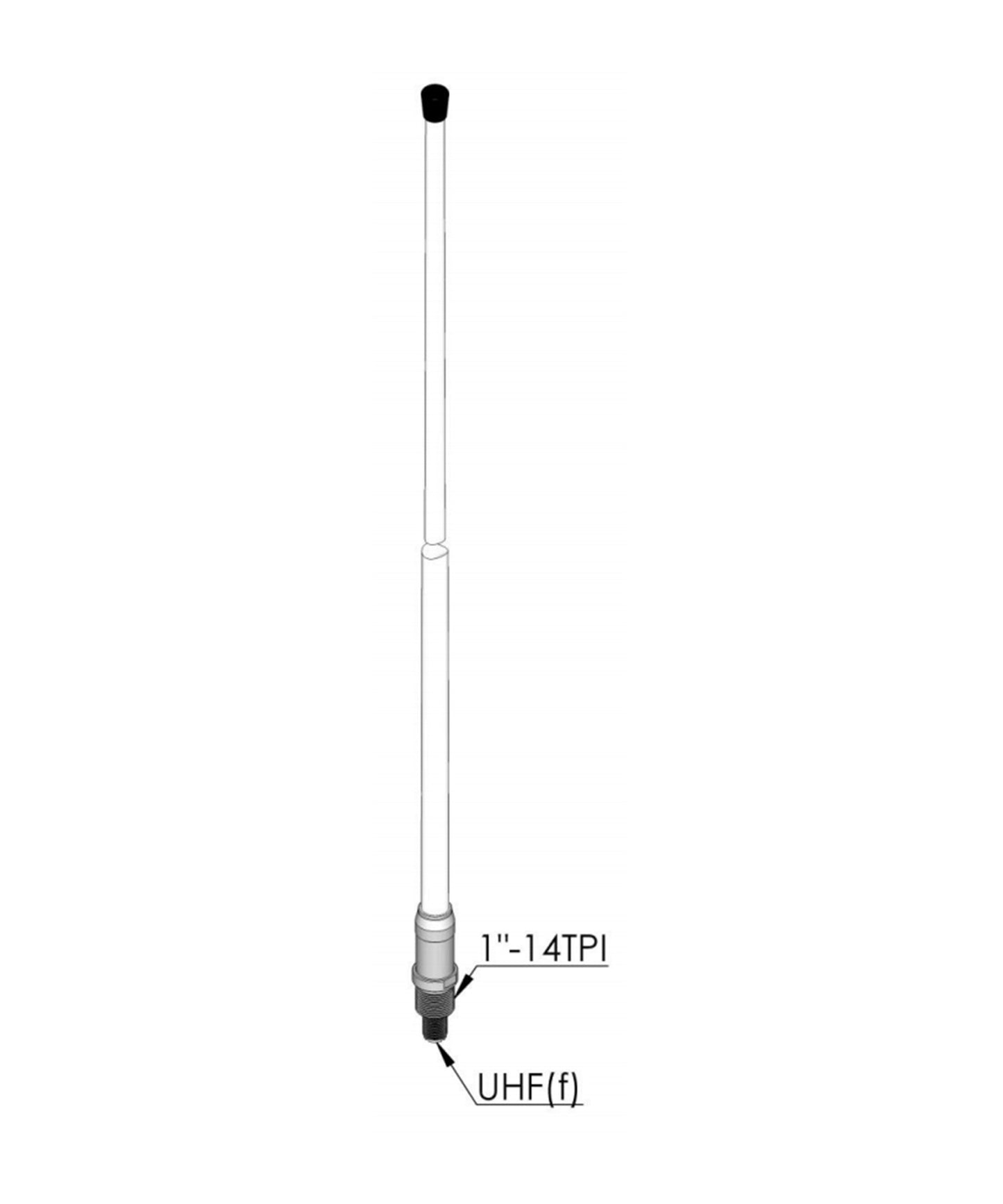

Thread 1" 14TPI Male
Parts included Excl. N240F

Further information
Product Sheet
Green Passport and Content Declaration

Product Code
ACM-CX3 5/8-10

Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
