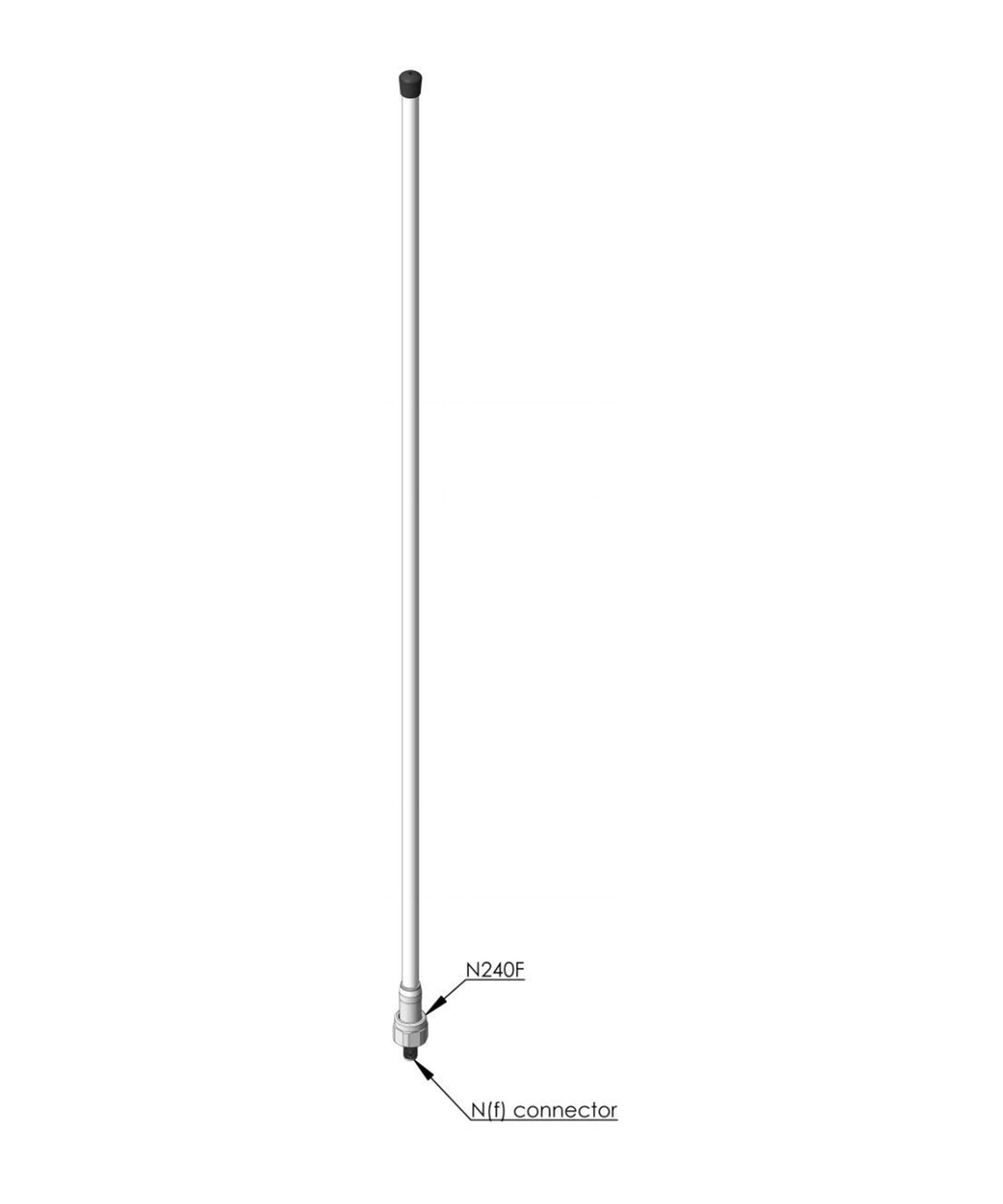

Photo of AC Antennas CXU3-1 UHF Antenna

AC Antennas CXU3-1 UHF Antenna

AC Antennas

  • S$240.00

Contact Us

Product Description

CXU3-1 is an omnidirectional antenna. The antenna is for use with radio telephone, two-way business radio and many other UHF applications. CXU3-1 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of brass.

CXU3-1 has been sold worldwide for more than four decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

Note:N240F Mounting is included with this product.

Electrical Specifications

Part No. 330000-T
Product Name CXU3-1
Frequency Range (MHz) 430.0-450.0
Gain (dBd / Marine dB) 3/6
Connector Termination N female
Power Rating (Watt) 100

Mechanical Specifications

Length (m/ft.) 1.44m / 4.72ft
Weight (kg/lbs.) 0.68kg / 1.50lbs
Thread 1" 14TPI / 1 1/4" 11 Male / Female
Parts included Excl. N240F

Further information
Product Sheet
Green Passport and Content Declaration

Product Code

Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
