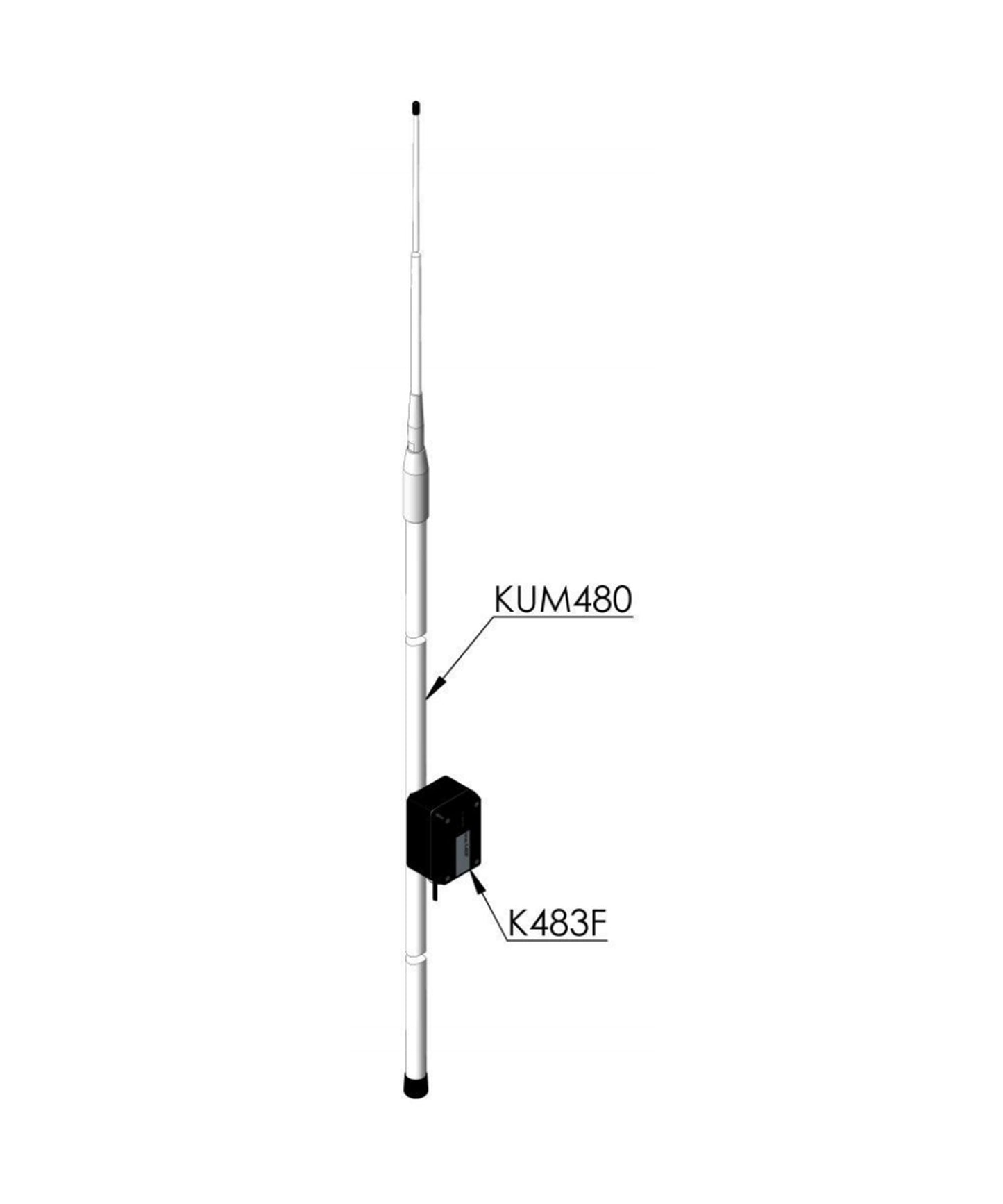

AC Antennas KUM480-1 HF/SSB Antenna
Product Description
KUM480-1 is a 2 section omnidirectional side-fed HF transceiver antenna for automatic antenna tuned systems for both leisure and commercial vessels. The KUM480-1 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper.
KUM480-1 has been sold worldwide for more than three decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.
Note: Mountings are not included with this product. Please refer to the Antenna Mounting Guide and purchase the appropriate mountings separately.
Electrical Specifications
| Part No. | 248001-P |
| Product Name | KUM480-1 |
| Frequency Range (MHz) | 1.40-30.00 |
| Connector Termination | Side Feed |
| Power Rating (Watt) | 500 |
Mechanical Specifications
| Length (m/ft.) | 4.80m / 15.74ft |
| Weight (kg/lbs.) | 2.09kg / 4.59lbs |
| Thread | Clamp set |
| Parts | 2-section |
Further information
Product Sheet
Green Passport and Content Declaration
Installation Guide
Installation Guide (Chinese)
Product Code
ACM-KUM480-1
Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
