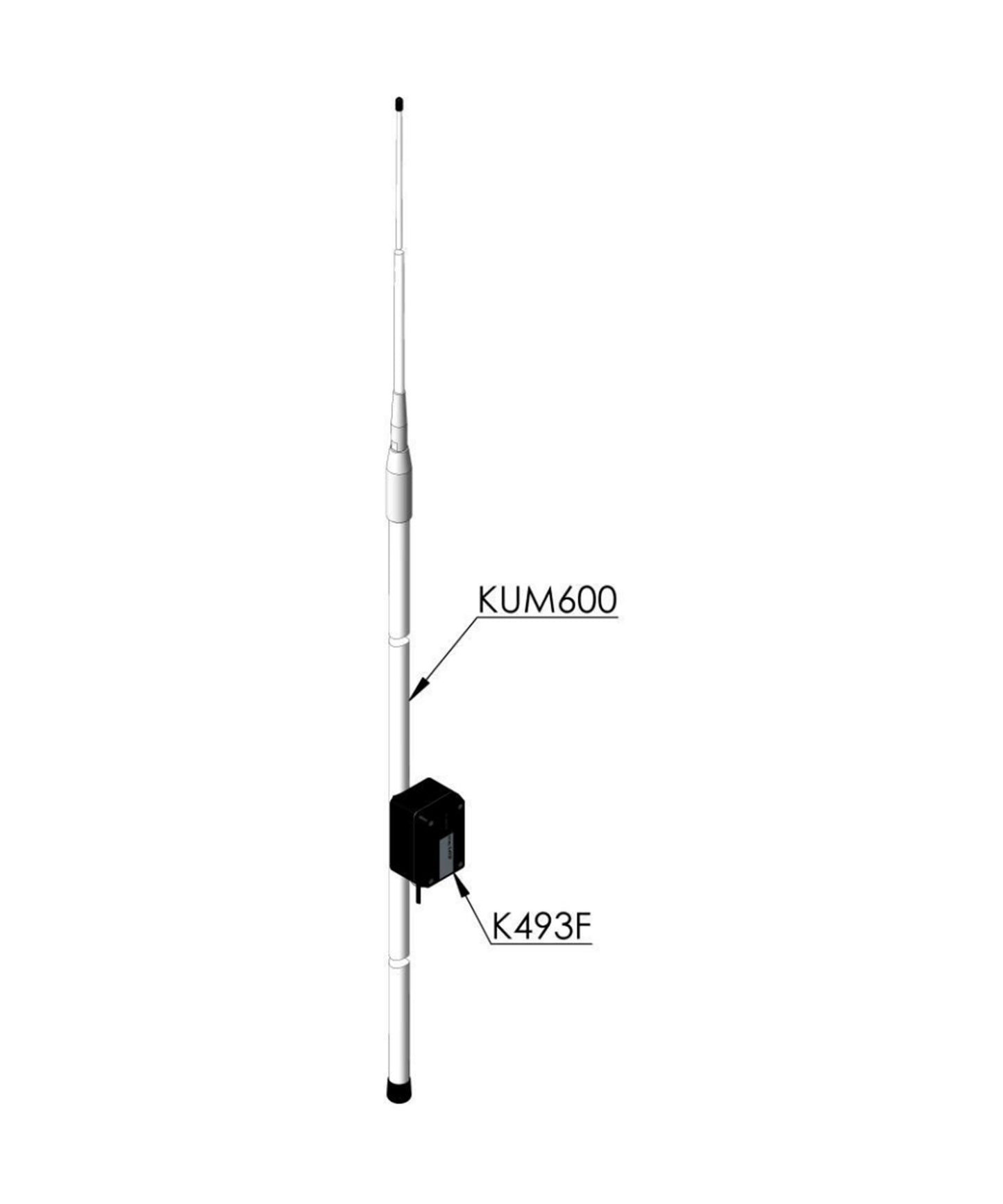

Photo of AC Antennas KUM600-2 HF/SSB Antenna

AC Antennas KUM600-2 HF/SSB Antenna

AC Antennas

  • S$610.00

Contact Us Only 8 left!

Product Description

KUM600-2 is a 2 section omnidirectional side-fed HF transceiver antenna for automatic antenna tuned systems for both leisure and commercial vessels. The KUM600-2 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper.

KUM600-2 has been sold worldwide for more than three decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

Note: Mountings are not included with this product. Please refer to the Antenna Mounting Guide and purchase the appropriate mountings separately.

Electrical Specifications

Part No. 260002-P
Product Name KUM600-2
Frequency Range (MHz) 0.15-30.00
Connector Termination Side Feed
Power Rating (Watt) Receive


Mechanical Specifications

Length (m/ft.) 6.00m / 19.68ft
Weight (kg/lbs.) 2.32kg / 5.10lbs
Thread Clamp set
Parts  2-section


Further information
Product Sheet
Green Passport and Content Declaration
Installation Guide
Installation Guide (Chinese)

Product Code
ACM-KUM600-2

Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
