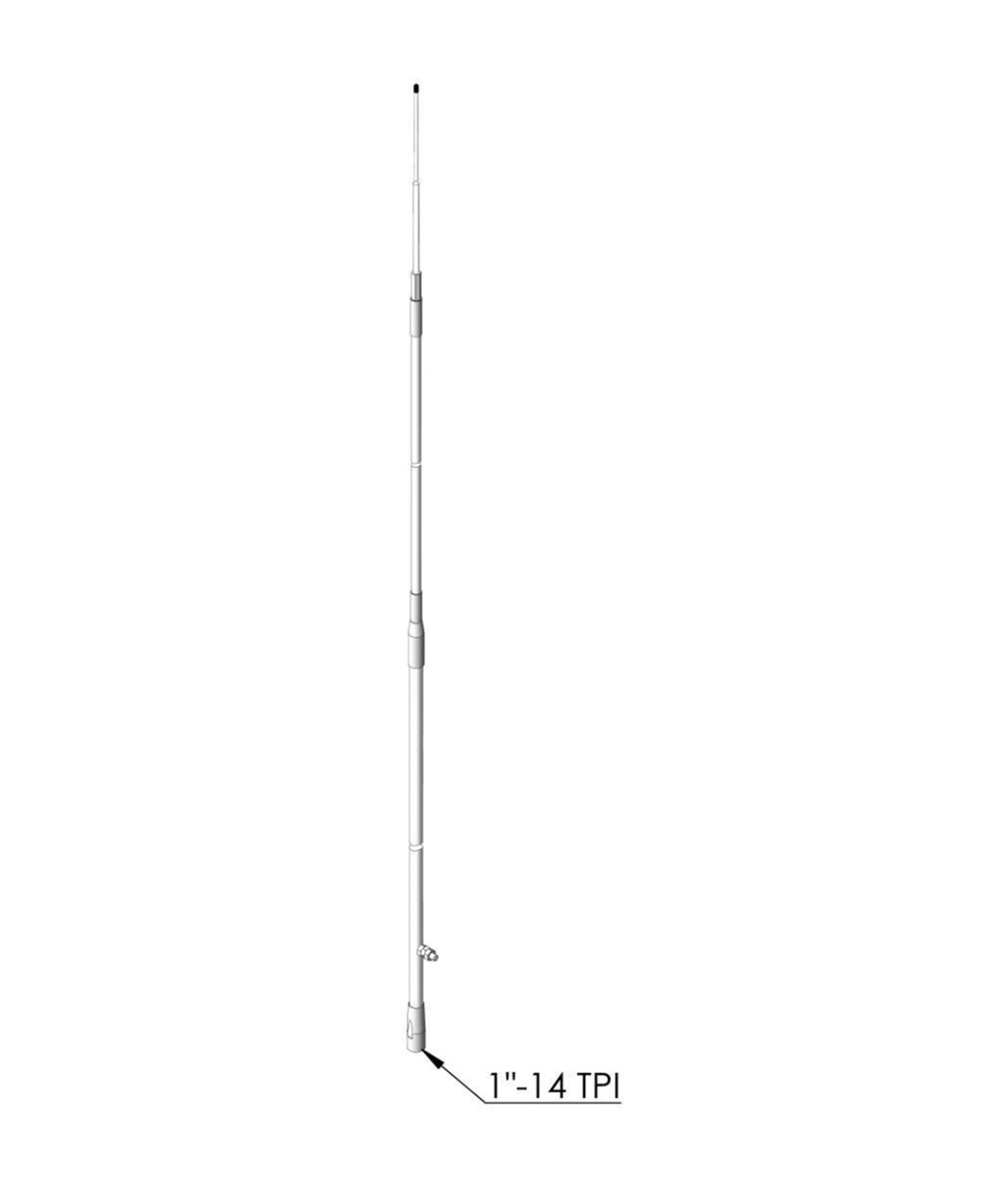

Photo of AC Antennas KUM731 HF/SSB Antenna

AC Antennas KUM731 HF/SSB Antenna

AC Antennas

  • S$526.00

Contact Us Only 1 left!

Product Description

KUM731 is a 3 section omnidirectional side-fed HF transceiver antenna for automatic antenna tuned systems for both leisure and commercial vessels. The KUM731 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper.

KUM731 has been sold worldwide for more than three decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

Note: Mountings are not included with this product. Please refer to the Antenna Mounting Guide and purchase the appropriate mountings separately.

Electrical Specifications

Part No. 273100-P
Product Name KUM731
Frequency Range (MHz) 1.40-30.00
Connector Termination Side Feed
Power Rating (Watt) 1000


Mechanical Specifications

Length (m/ft.) 6.80m / 22.30ft
Weight (kg/lbs.) 3.10kg / 6.82lbs
Thread 1" 14TPI Ferrule Female
Parts  2-section


Further information
Product Sheet

Product Code
ACM-KUM731

Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
