Actisense NMEA 0183 Buffer NBF-3-BAS

Actisense

  • S$387.00

Contact Us Only 55 left!

Product Description

The Actisense NMEA 0183 Buffer isolates and buffers NMEA 0183 data, with the power to drive multiple devices.

Ground breaking ISO-Drive technology from Actisense means you can safely connect to 6 NMEA 0183 Listeners to the NBF-3 with complete peace of mind that your devices are safe from hazardous ground loops. The OPTO-isolated input also protects the connected Talker.

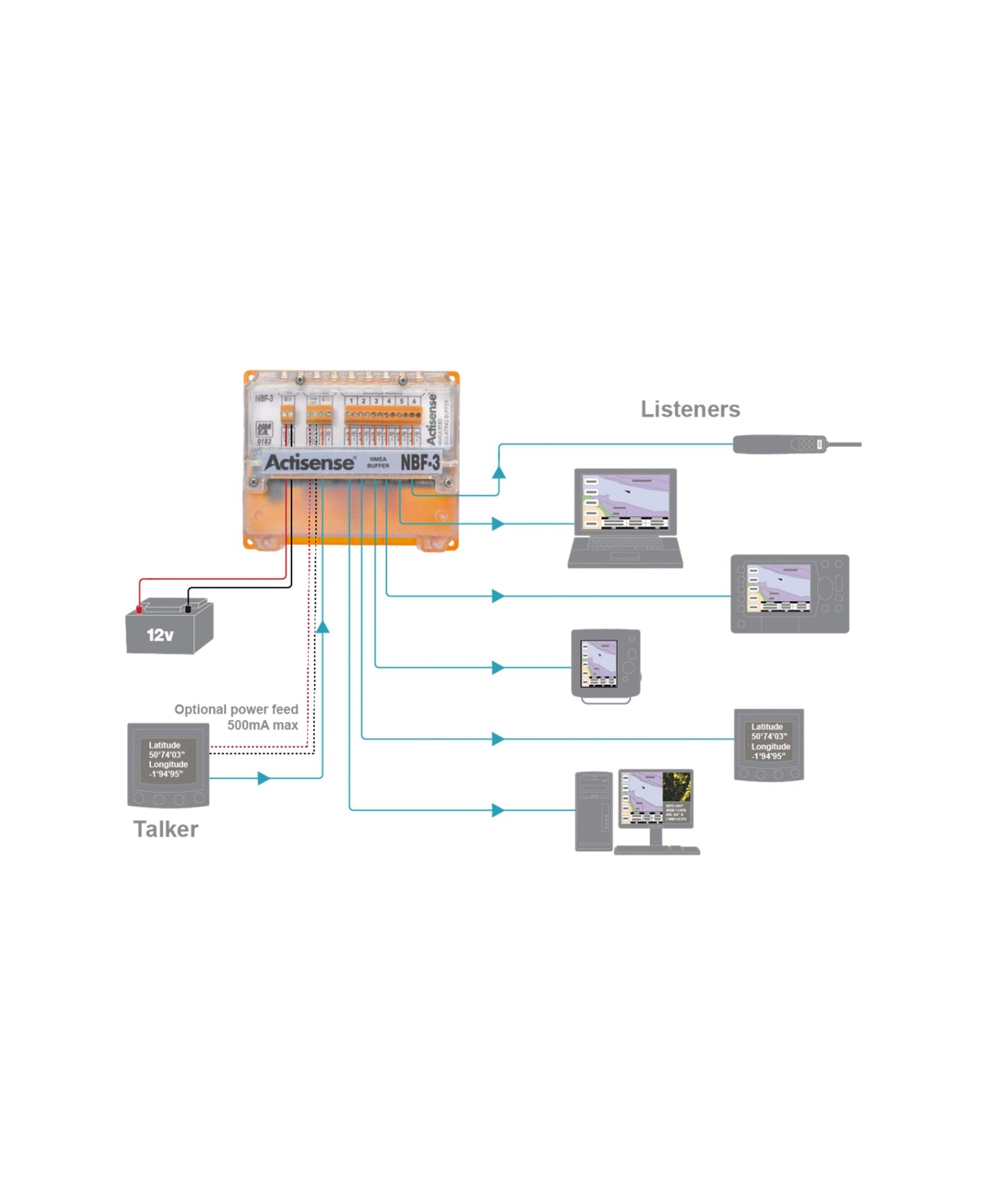

The NBF-3 can distribute up to six identical, amplified streams of data from one source. The NMEA signals are buffered to ensure that each Listener receives the data at the required voltage levels, providing consistent data quality.

The NBF-3 has the addition of power distribution for the NMEA Talker. By having power and data from the same source, cabling requirements are reduced and installation is simple.

Key features:

  • One OPTO-isolated input and Six ISO-Drive outputs for safe connections
  • Compatible with all NMEA 0183 devices
  • Pluggable screw terminals and DIN Rail mount provide quick and easy installation
  • Power and input indicator LEDs to aid network diagnosis
  • Power feed for single cable installations to the NMEA Talker helps reduce cabling requirements
  • Compatible with all NMEA 0183 devices
  • Pluggable screw terminals and DIN Rail mount provide quick and easy installation
  • Power and input indicator LEDs to aid network diagnosis
  • Power feed for single cable installations to the NMEA Talker helps reduce cabling requirements

General Specifications

Input Supply Voltage 10 to 35V DC
Input Supply Current (NBF-3 only) 100mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
Number of Listener / Input Ports One isolated NMEA 0183 Listener
Number of Talker / Output Ports Six isolated NMEA 0183 Talkers
Compatibility Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
Galvanic Isolation 2500V input to ground 1500V output to ground using ISO-Drive
EMC EN 60945 (sections 9 & 10)
Environmental Operating Temperature: -20 to +70 degrees Celsius
Storage Temperature: -40 to +85 degrees Celsius
Protection Class: IP66


Size Specifications

Dimensions (mm) 127mm (L) x 106mm (W) x 48mm (H)
Weight (g) 210g

Further information
Manufacturer Product Features and Details
Product Sheet
User Manual

Product Code
ACT-NBF-3-BAS

Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
