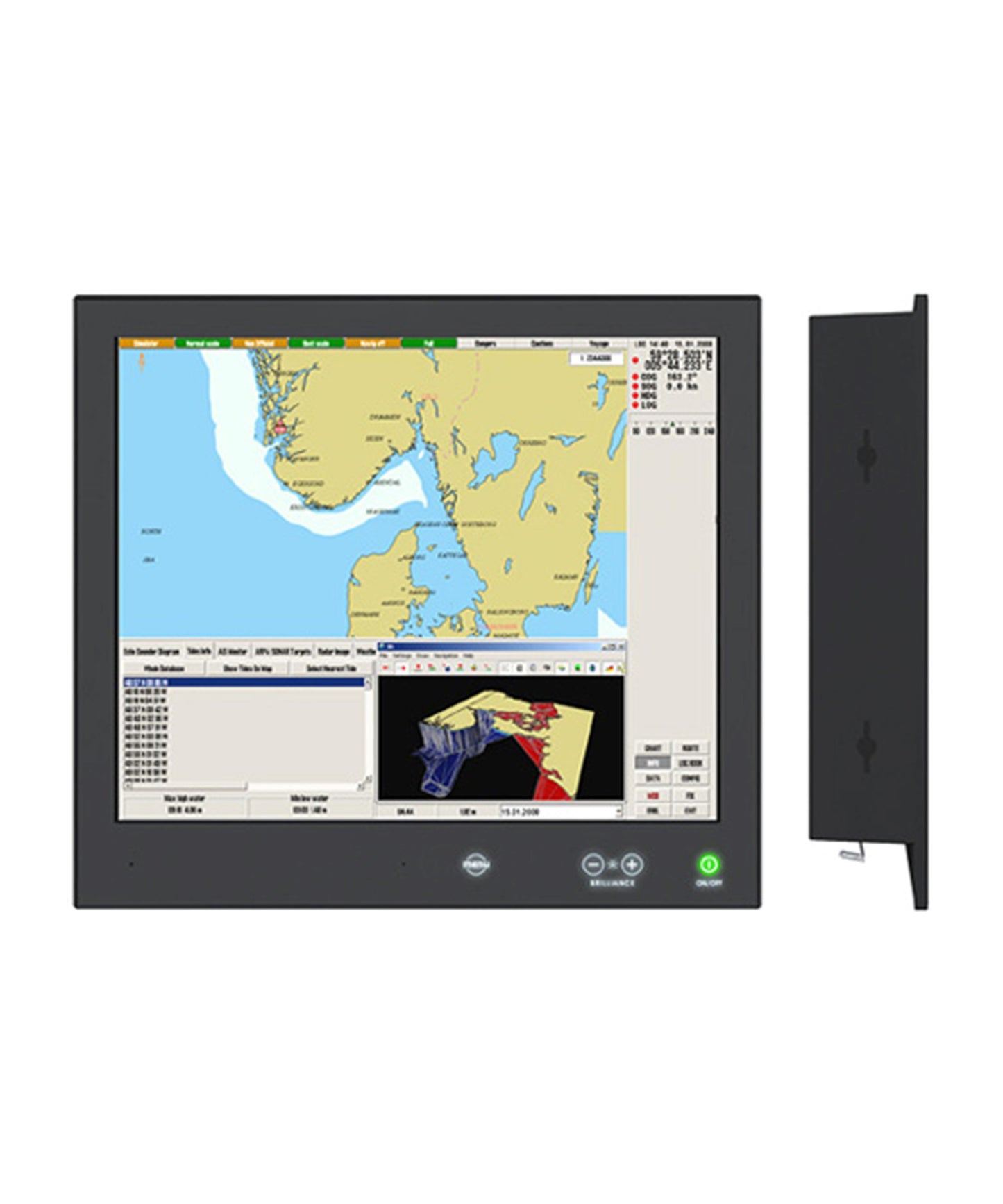

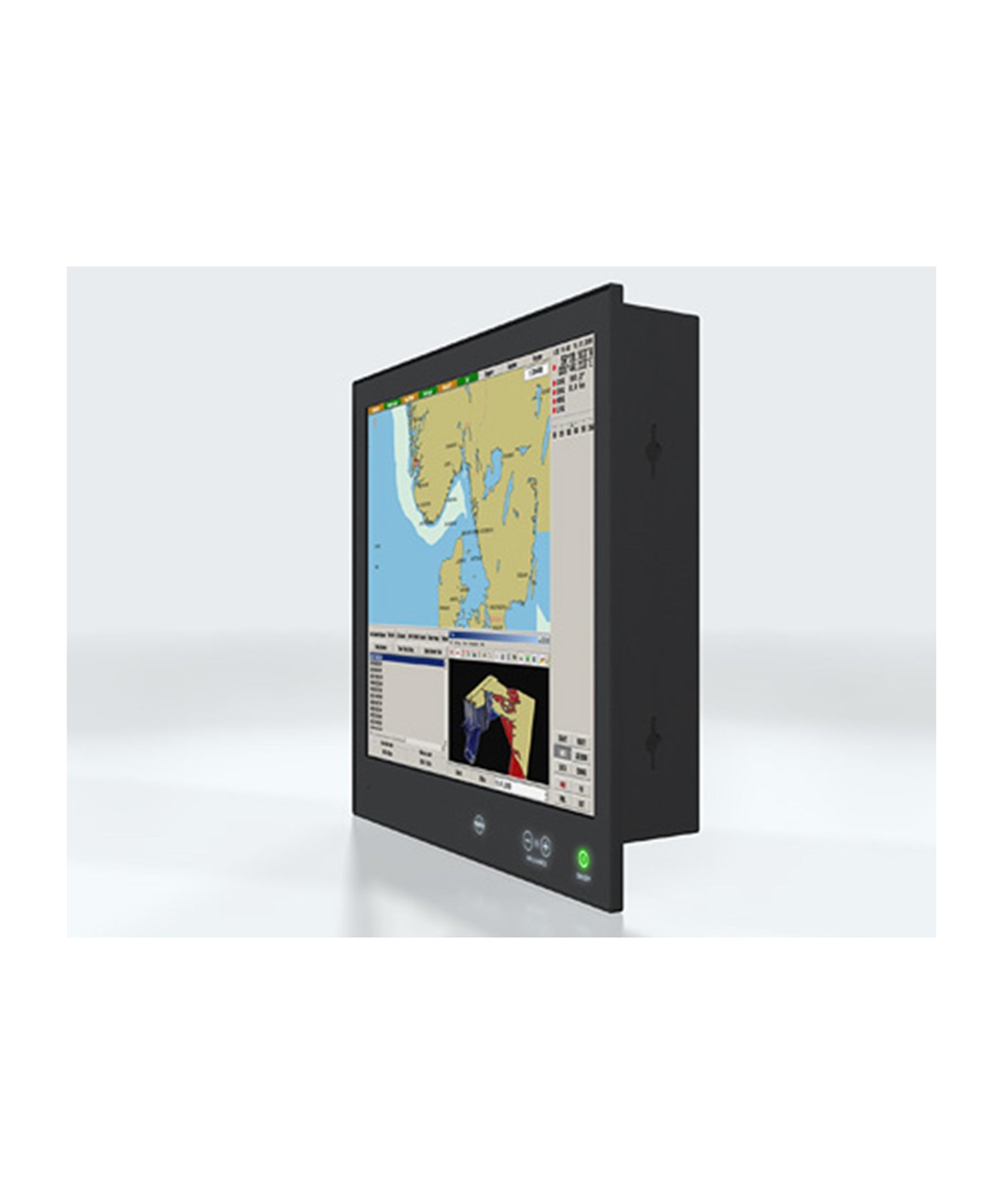

Hatteland HD 19T21 STD-MA1-FAGA 19" STD Series X ACDC Black GDC Buzzer
Product Description
Series X Displays offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.
The Series X display range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.
The entry level STD models provide a wide choice of display size and format for shipboard applications where simple data input (DVI & VGA) is required. Be it for ship navigation or automation, this range with all it's possible options provides a robust and cost effective platform from which to display and manage data.
Series X displays feature Glass Display Control™, LED Backlight Technology, full dimming and multipower as standard, and can also accomodate and combine a number of options such as multi-touch screen and optical bonding.
This product includes:
- 1 x DVI-D Cable (2m)
- 1 x VGA Cable (2m)
- 1 x Power Cable European Type F to IEC (1.8m)
- 1 x Power Cable US Type B to IEC (1.8m)
- Console Mounting Kit
- 1 x 2-Pin Terminal Block for DC Power In
- 2 x 5-Pin Terminal Block for RS422/485
This Display can be used with:
- Hatteland HD TMB SX1-B1 Mounting Bracket
General Specifications
| Viewable Size | 19" |
| Active Display Area | 376.32mm (H) x 301.056mm (V) |
| Aspect Ratio | 5 : 4 |
| Resolution | 1280 x 1024 |
| Contrast Ratio | 1500 : 1 |
| Brightness | 350cd / sqm |
| Response Time | 20ms |
| Power Supply | Multi-power 100/230VAC - 50/60Hz + 24VDC |
| Power Consumption | 33W (TYP) - 125W (MAX) |
| Signal Inputs |

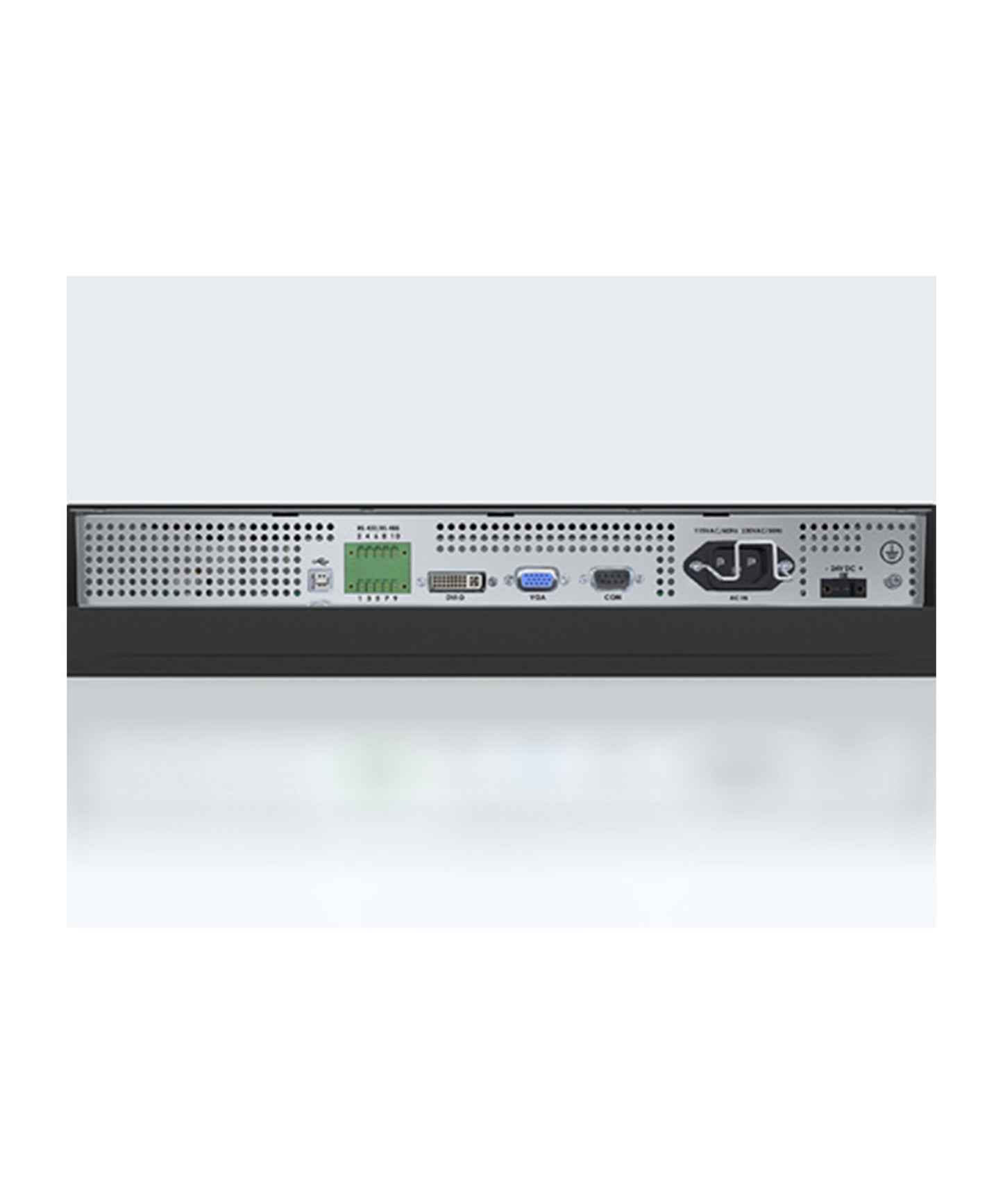

• DVI IN: 1 x DVI-D 24P (female) • VGA IN: 1 x HD D-SUB 15P (female) • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer • AC Power IN: 1 x Std. IEC inlet • DC Power IN: 1 x 2-pin Terminal Block 5.08 |
| IP Rating | Protection: IP66 front - IP22 rear (EN60529) |
| Type Approval |
IEC 60945 4th (EN 60945:2002), IACS E10, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, CCS - China Classification Society, LRS - Lloyd's Register, EU-RO-MR - Mutual Recognition |
Size Specifications
| Dimensions (mm) | 429 (W) x 382 (H) x 74.5 (D) |
| Weight (kg) | 7.8kg |
Further information
Manufacturer Product Features and Details
Product Sheet
User Manual
Product Code
HT-HD19T21STDMA1FAGA
Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
