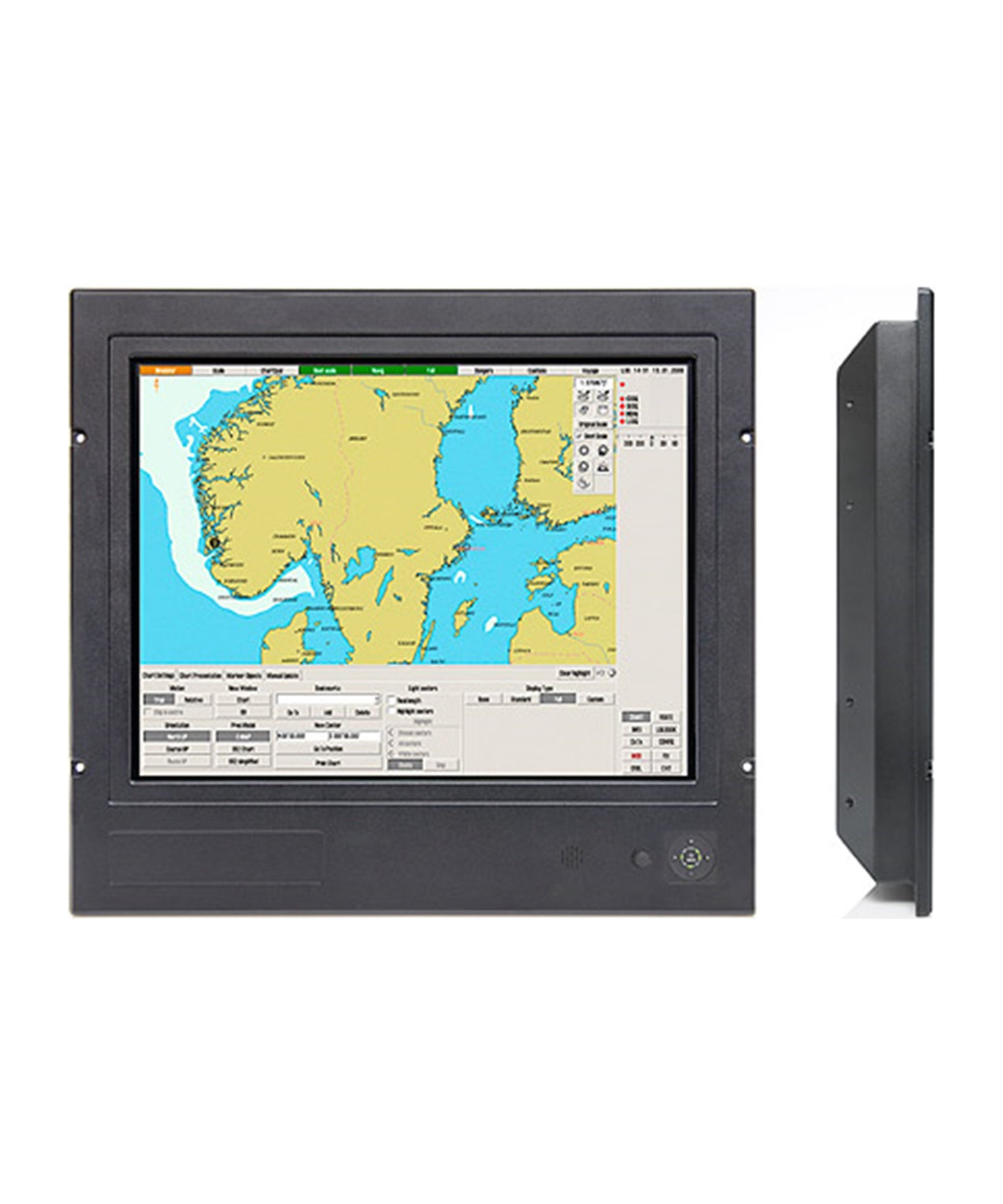

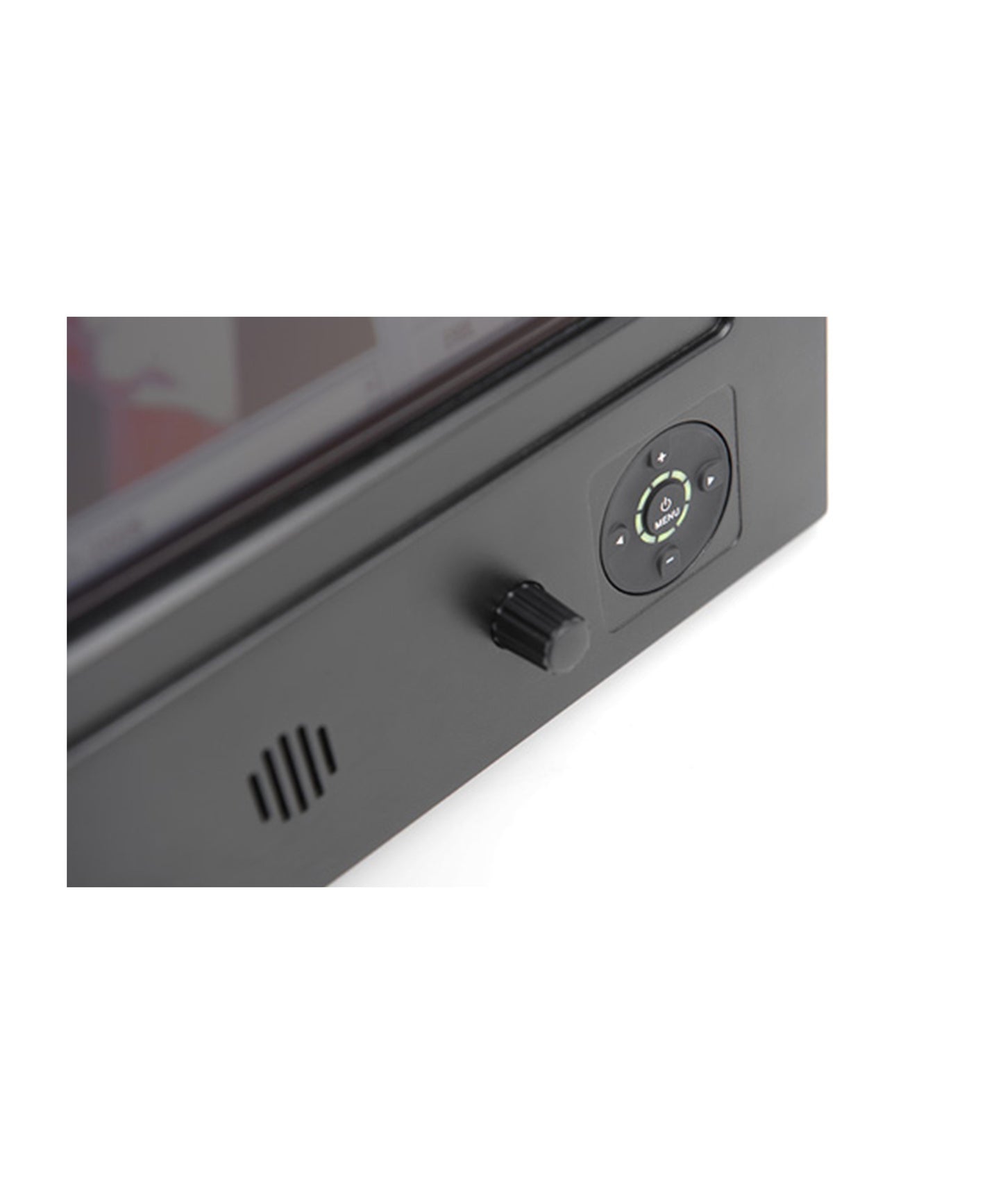

Hatteland JH 23T14 MMD-MA1-AABA 23.1" MMD Series 1 ACDC RAL9011 Potmeter Controls (IP66)
Product Description
The Series 1 Maritime Multi Display (MMD) models are delivered with Multi-power (AC and DC power input built in) ensuring that they are compatible with all power systems on all vessels. It will automatically switch to whatever power is connected, making it highly flexible for shipbuilders and system integrators alike. Connections in addition include DVI-I in, VGA out, VGA in, IEC outlet and USB I/O.
Signal input/output options can be increased by using the Multifunction Connector, which allows the connection of many common signal types through a single cable connection, for common signals such as; Composite Video Input, Touch Screen and Serial Communication. The Series 1 provide Picture-By-Picture (PBP) and Picture-In-Picture (PIP) functionality.

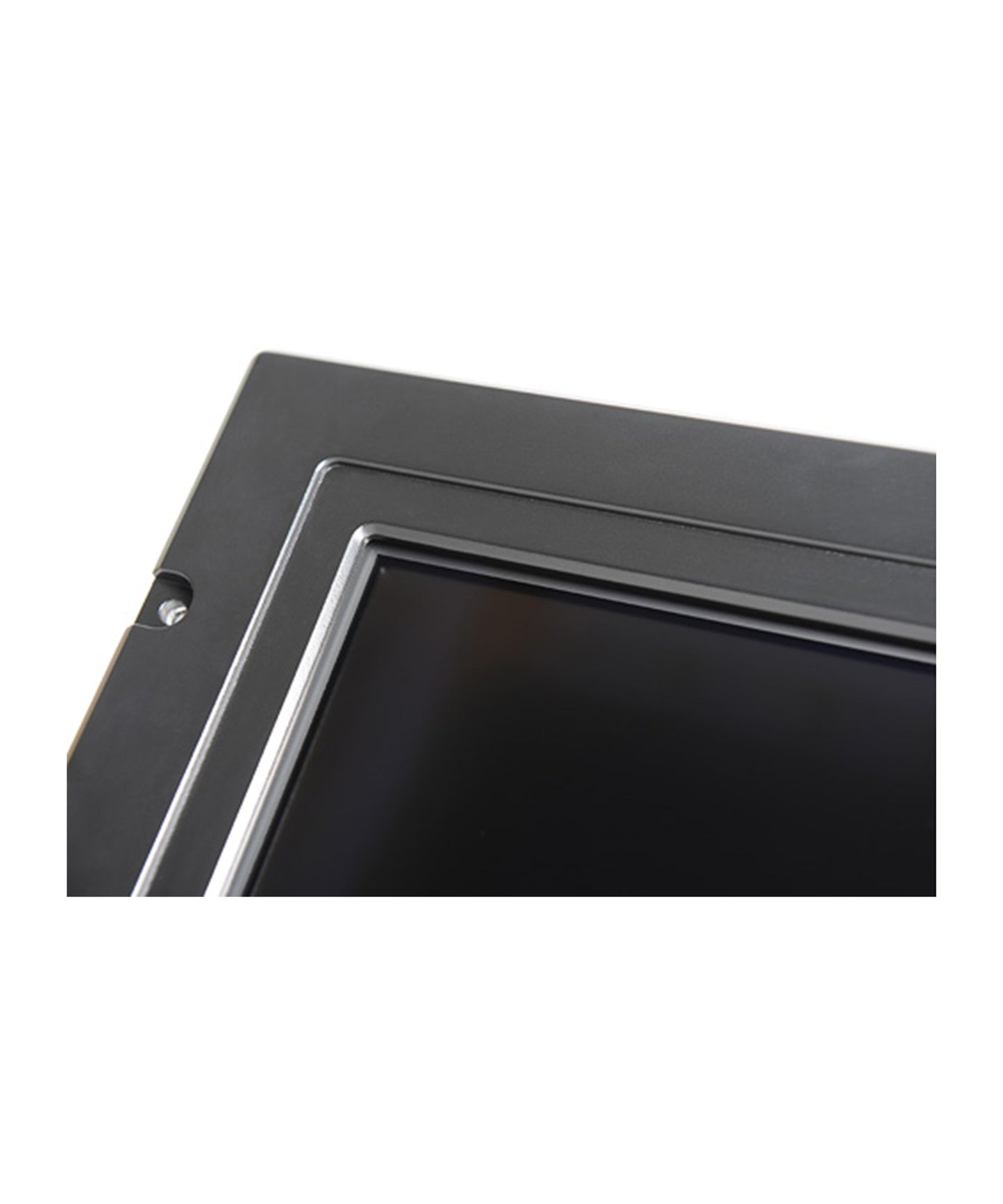

The unit features LED Backlight Technology instead of traditional CCFL Backlighting which increases the light intensity life time. Further, with Optical Bonding Technology the viewing performance, reliability and lifespan increases dramatically. Bonding will also help with problems related to condensation, sunlight reflection, night vision and overheating. By factory standards the unit is ECDIS Compliant.
This product includes:
- 1 x DVI-D Cable (2m)
- 1 x VGA Cable (2m)
- 1 x Power Cable European Type F to IEC (1.8m)
- 1 x Power Cable US Type B to IEC (1.8m)
- 1 x Multifunction Cable (VSD100692-4) (30cm)
- 1 x DVI to RGB/VGA adapter
- 1 x DC Power Input Housing
This Display can be used with:
- Hatteland JH 23TBR T01-A1 Mounting Bracket
- Hatteland JH MMDRO STD-A1 Rotary Bracket
General Specifications
| Viewable Size | 23.1" |
| Active Display Area | 470.4mm (H) x 352.8mm (V) |
| Resolution | 1600 x 1200 |
| Aspect Ratio | 4: 3 |
| Contrast Ratio | 600 : 1 |
| Brightness | 400cd / sqm |
| Response Time | 12ms (black-white-black) / 8ms (gray-to-gray) |
| Power Supply | Multi-power 115/230VAC - 50/60Hz + 24 VDC |
| Power Consumption | 95W (TYP) - 125W (MAX) |
| Signal Inputs |

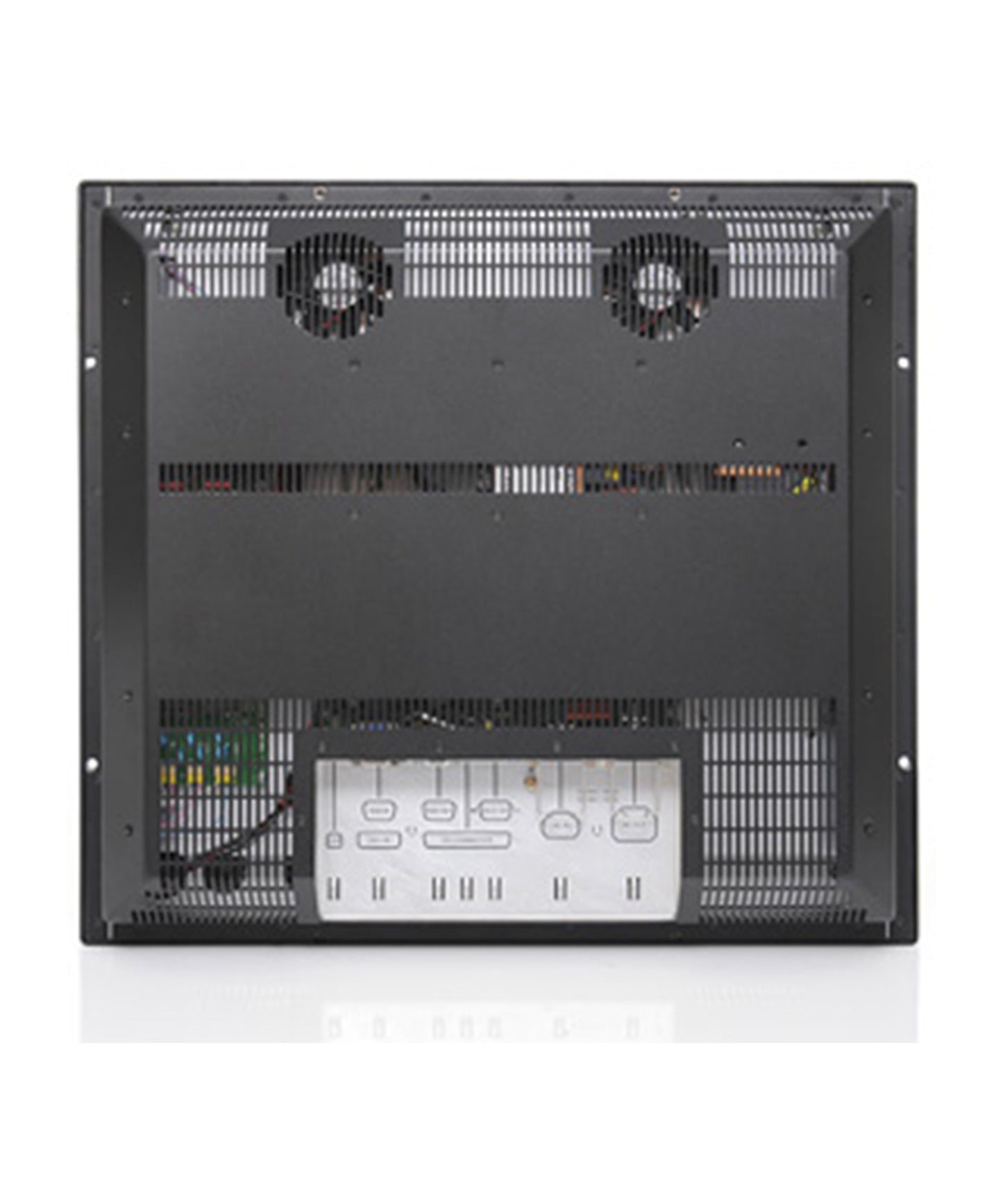

• DVI IN: 1 x DVI-I 29P (female) • VGA IN: 1 x HD D-SUB 15P (female) • VGA OUT: 1 x HD D-SUB 15P (female) • Multifunction: 1 x D-SUB 160P (female) • USB: 1 x Type B (female) • AC Power IN: 1 x Std. IEC inlet • AC Power OUT: 1 x Std. IEC outlet (5A max) • DC Power IN: 1 x 2P DSUB (male) Amphenol FCC17 |
| IP Rating | Protection: IP66 front - IP20 rear (EN60529) |
| Type Approval |
IEC 60945 4th (EN 60945:2002), IP66, NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd, DNV - Det Norske Veritas, ABS - American Bureau of Shipping, BV - Bureau Veritas, LRS - Lloyd's Register, CCS - China Classification Society, EU-RO-MR - Mutual Recognition |
Size Specifications
| Dimensions (mm) | 584 (W) x 534 (H) x 85 (D) |
| Weight (kg) | 18kg |
Further information
Manufacturer Product Features and Details
Product Sheet
User Manual
Product Code
HT-JH23T14MMDMA1AABA
Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
