Hatteland HD TMB SX1-C1 Black Mounting Bracket for 24", 26" & 27" Series X MMD & STD


Please contact us so we can understand your requirements.

As a Hatteland Authorized Service Partner, our friendly Hatteland-approved sales engineer will be happy to assist!


Product Description

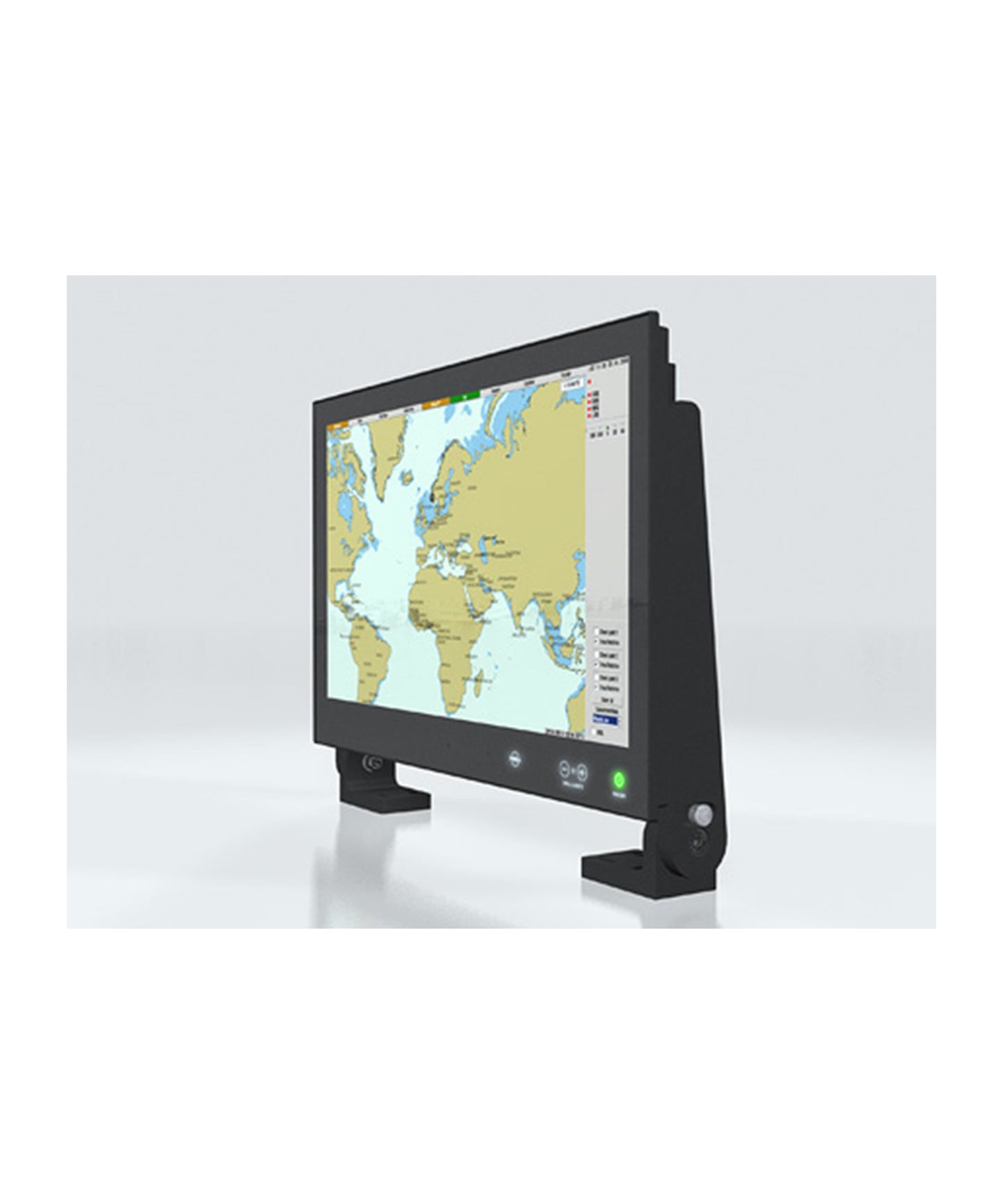

Black coloured Mounting Bracket designed to fit 24", 26" and 27" Series X MMD and STD displays. It can be installed on a desktop or ceiling and has a 60 degree forward tilting angle / 90 degree backward tilting angle.

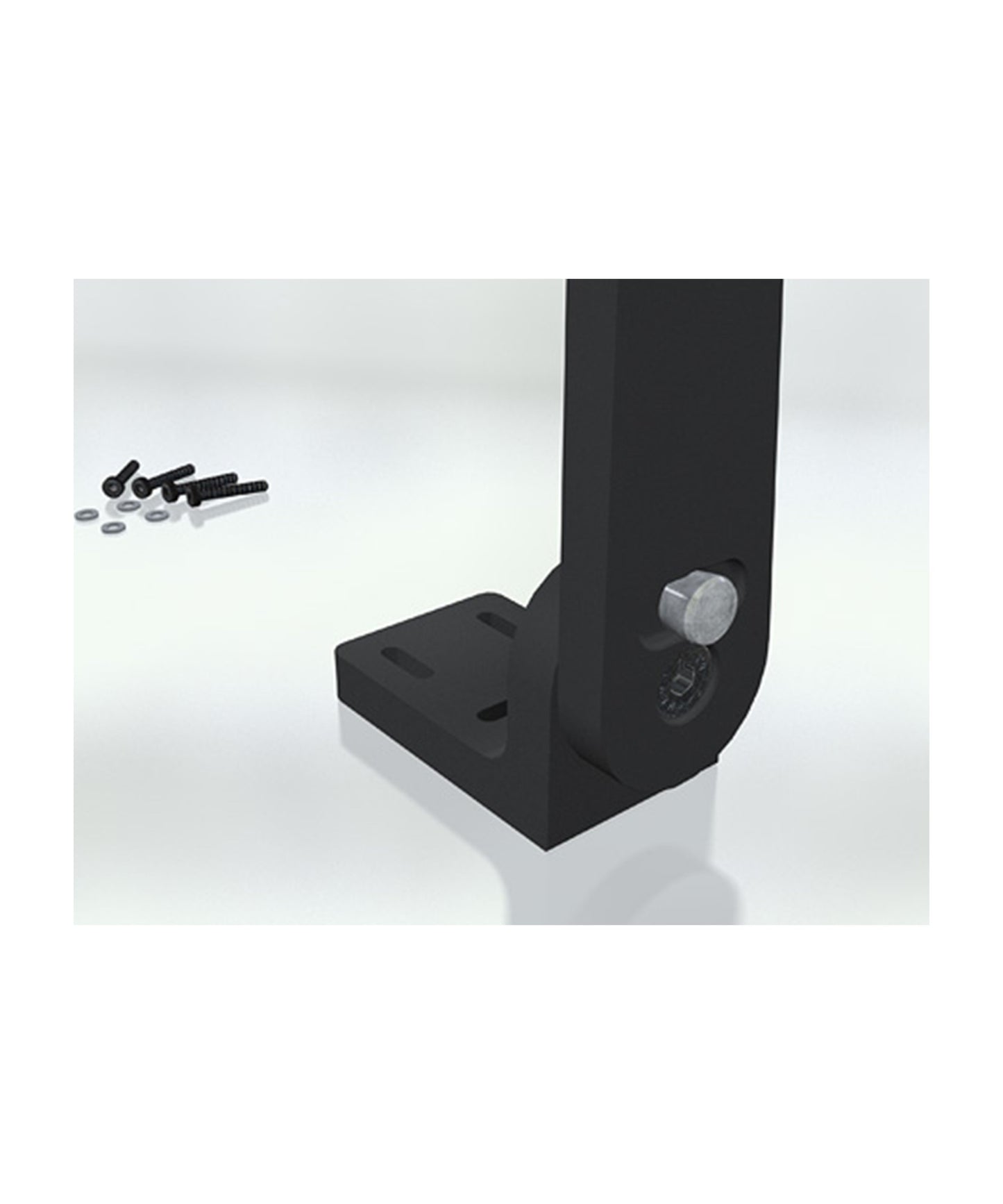

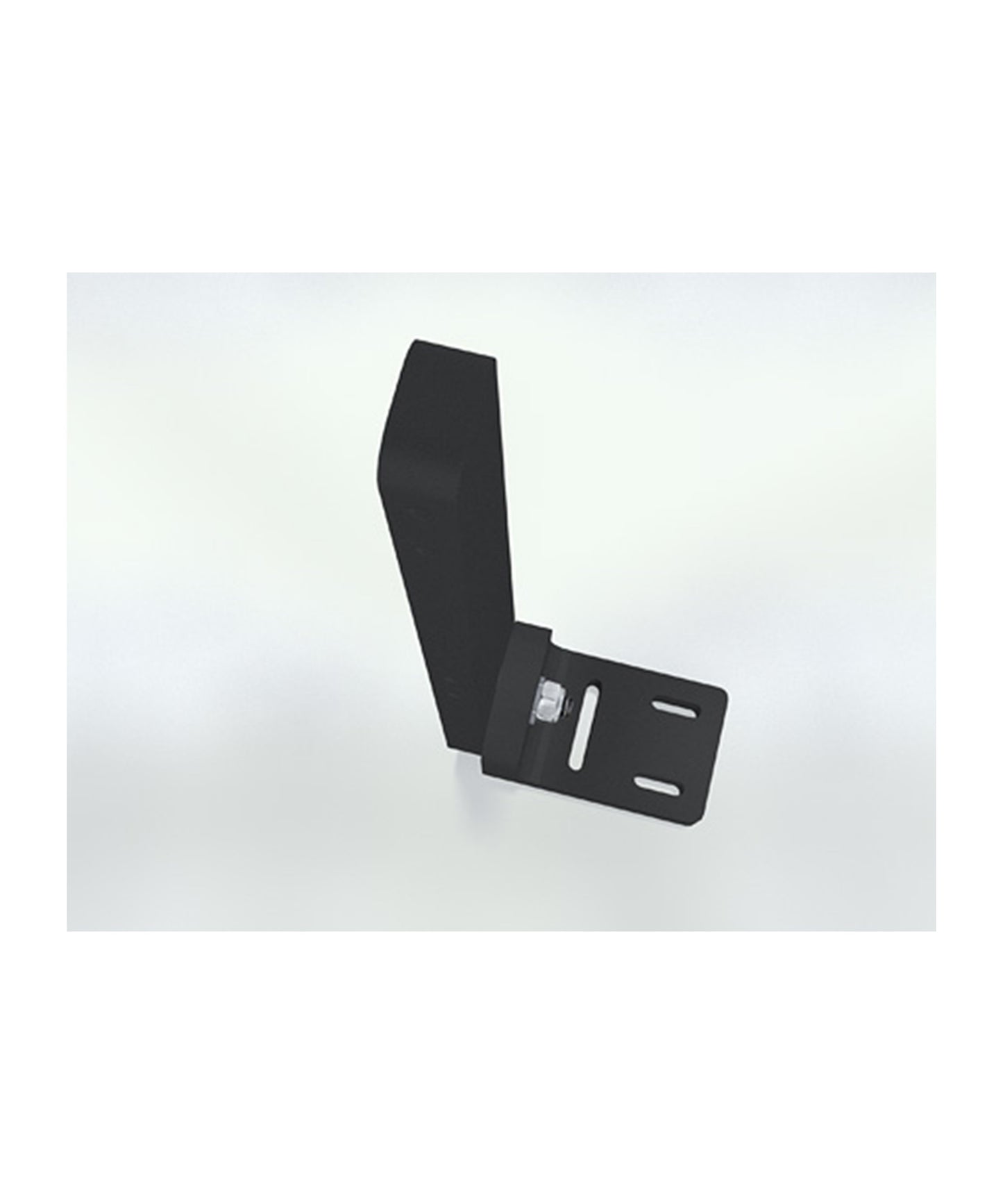

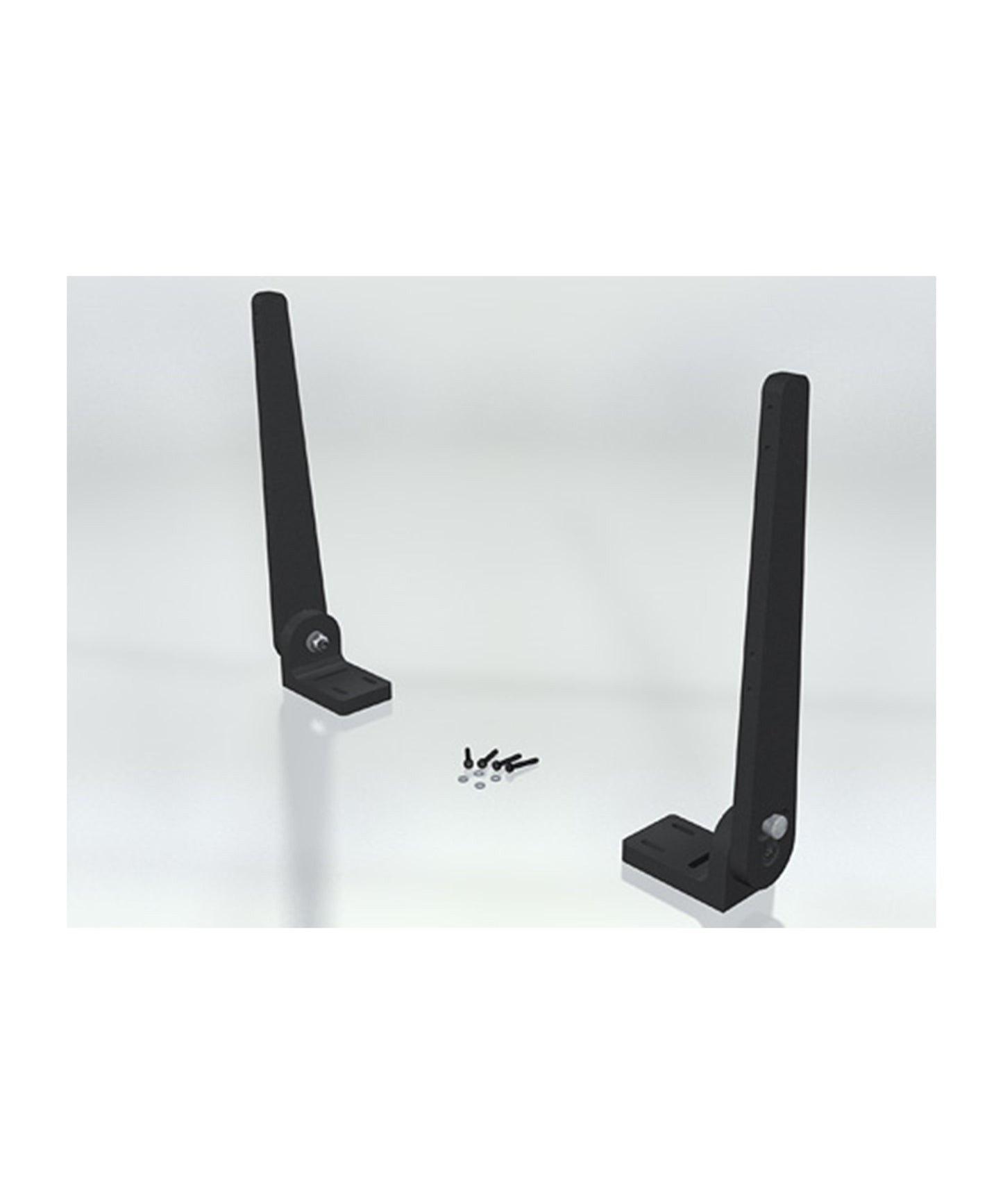

The kit consists of 2 brackets (fully assembled) marked Left and Right.

Test and approved to IEC 60945, IACS E10, EU-RO-MR (Covers ABS, BV, CCS, ClassNK, DNV, GL, KR and RS) standards.

This Mounting Bracket can be used with:
- HD 24T21 STD-MA1-FAGA 24" Series X STD
- HD 26T22 MMD-MA1-FAGA 26" Series X MMD
HD 26T22 MMD-MA4-FAGA 26" Series X MMD (ECDIS Calibrated)
HD 27T22 MMD-MB1-FAGA 27" Series X MMD

Further information
Manufacturer Product Features and Details
Technical Drawings
User Manual

Product Code
HT-HD TMB SX1-C1

Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
