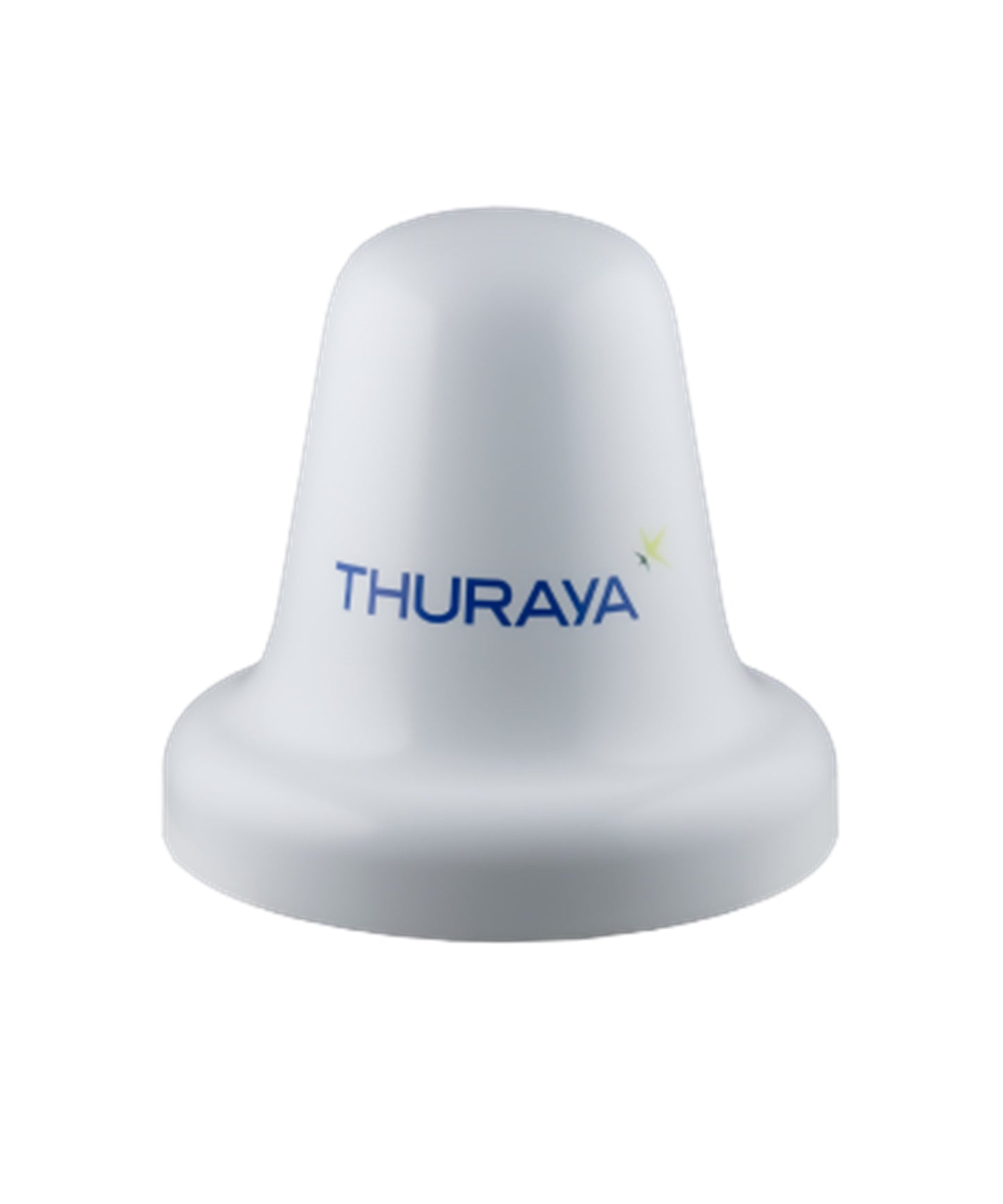

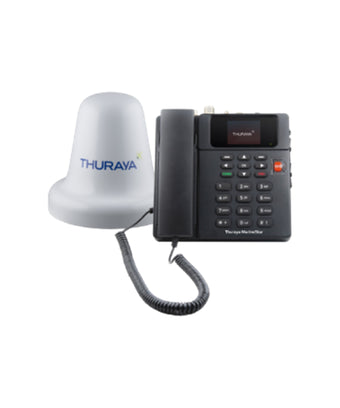

Thuraya MarineStar Maritime Voice & Data Terminal

Thuraya

  • S$1,235.00

Contact Us Only 53 left!

Product Description

Thuraya MarineStar Maritime Voice & Data Terminal is the most affordable maritime satellite voice solution with tracking and monitoring capabilities. Voice call, SMS and data (GmPRS) services.

The all-new Thuraya MarineStar blends robust design with unprecedented functionality and unmatched levels of value to provide flawless voice communications with tracking and monitoring across the world’s busiest sea routes and fishing hotspots.

Thuraya MarineStar offers circuit-switched voice besides SMS, GmPRS data and tracking services on an easy and intuitive interface. It enables satellite calls to landlines, mobile phones and other satellite phones over Thuraya’s satellite network. The MarineStar can also connect to a standard analogue phone as an extension or an on-board PBX.

Built to IEC 60945 standards and unaffected by extreme environments, it synergizes productivity and efficiency on larger vessels by supporting digitalization of crucial applications such as condition based navigation, SOS and other emergency alerts through push notifications. The MarineStar is also ideal for regional merchant fleets needing a backup alternative to radio communications and GSM for Regulatory compliance by advanced tracking and monitoring voice.

Key features:

  • Quick and easy to install
  • Circuit-switched voice
  • Fish catch reporting capability
  • Advanced 2-way vessel tracking with application and monitoring
  • OTA (over-the-air) programming capability
  • Versatile interface functions
  • Geofencing capability
  • Radio silence capability
  • SOS alert
  • Push notifications for weather, news and other alerts
  • Languages: English, Chinese, Vietnamese, Japanese, French, Arabic, Bahasa, Tagalog, Turkish
  • Tracking application as a service

This product includes:
- 1 x Base Terminal
- 1 x Active Antenna
- 1 x Antenna Mounting Kit (L shaped based plate, 2 U clamps, 4 M6 nuts & washers)
- 1 x Power Cable (5 meters with 2P circular cable connector)
- 1 x SAT RF Cable (25 meters with N-type Male connectors)
- 1 x GPS RF Cable (25 meters with SMA Male connectors)
- User Manual

General Specifications

Voice Call
Circuit-switched
SMS
Up to 160 characters (English)
Data
GmPRS (60kbps / 15kbps) via external interface
Ingress Protection
Base Terminal (BDU): IP32
Antenna (ADU): IP56
Approvals
CE, RoHS, REACH, IEC60945 & 62368, RED & RCM
Physical Interfaces
- GPIO -2in -2out
- RS-232
- NMEA support
- RJ-11 analog phone extension and PBX
- Inbuilt PBX between BDU and extension phone to support office-on-the-bridge requirements
- 3.5mm audio output


Size Specifications

Dimensions
Antenna: 180mm x 170mm
BDU: 203mm x 190mm x 72.7mm
Weight
Antenna: 1.3kg
BDU: 1.07kg

Further information
Product Sheet
User Manual
Manufacturer Product Features and Details

Product Code
THU-MARINESTAR

Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
